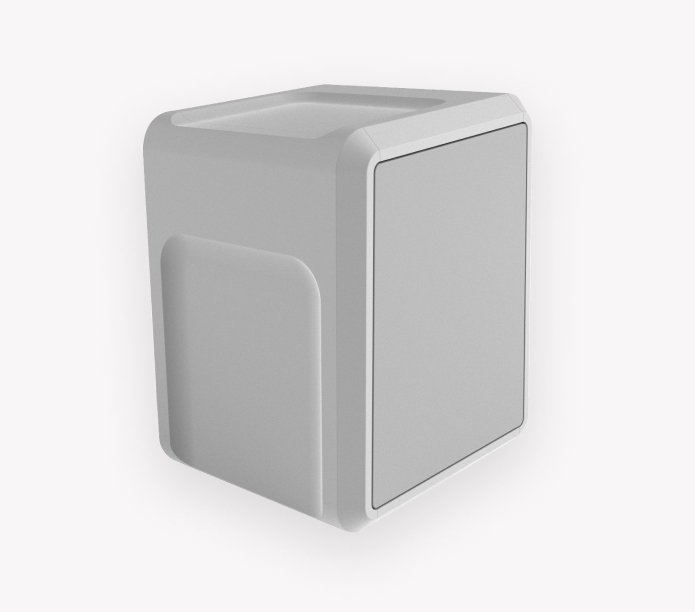

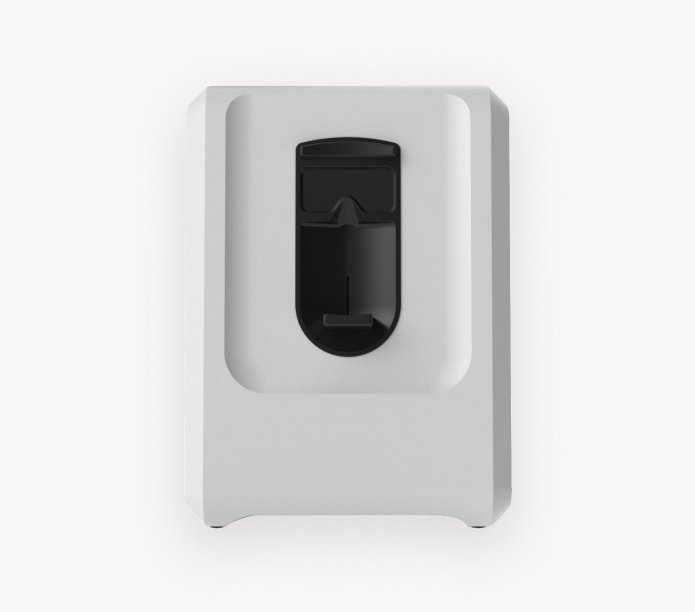

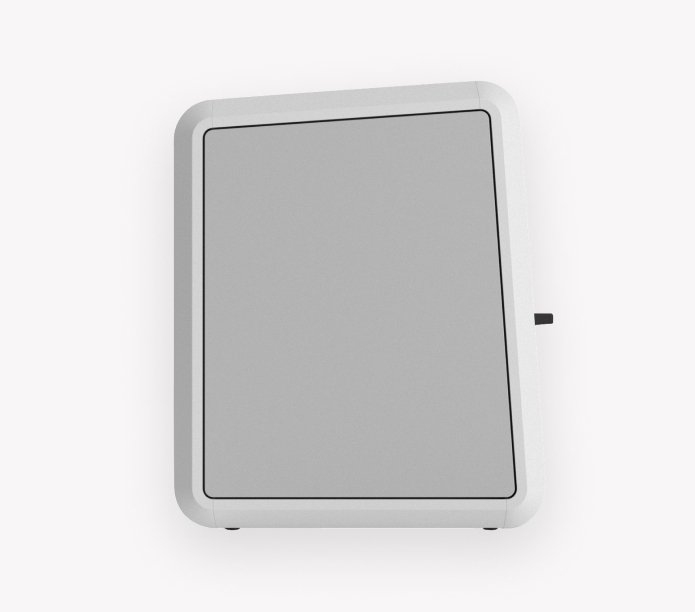

DaytonTM AVT

HFR introduces the most advanced vision testing instrument for your clinical and research needs.

Dayton AVT was developed in collaboration with the US Air Force Operational Based Vision Assessment (OBVA) laboratory to support new demands in vision testing for the USAF aircrew members. It crystalizes years of vision test development by the USAF vision scientists in a single multifunctional instrument.

  • Fully automated operation
  • Pre-programmed and custom exam protocols
  • Comprehensive assessment of visual function
  • Three testing distances
  • Accurate threshold based testing
  • NIST traceable factory calibration
  • Self calibration function
Send Request

  • Patient care

    • Early detection of changes in the visual function
    • Multifocal contact lens fitting
    • Vision therapy follow up
    • Sports vision performance evaluation
    • Binocular vision evaluation

  • Clinical studies

    • Multiple measurements in a single device
    • Superb test-retest and inter-device repeatability
    • Self calibration
    • Custom exam protocols
    • Multi-site exam equivalence
    • Internal database with custom queries
    • DICOM output

  • Research

    • Extreme sensitivity for detection of smallest effects
    • Self calibration
    • Superb test-retest repeatability
    • Built in threshold procedures
    • Psychometric parameter outputs
    • SDK for custom test development
    • Convenient data management

Specifications

Operation

Fully automated
Testing method

Psi function (threshold & slope)
Test distances

16-inches: 32-inches; 20-feet
Visual Acuity range

20/10 - 20/400
Color Contrast. L,M Cones (Weber Contrast)

0.25% - 10%
Color Contrast. S Cone (Weber Contrast)

3% - 50%
Achromatic Contrast (Weber Contrast)

< 1%
Field of view

15 Prizm diopters
15 Prizm diopters

5 arcsec
Banner

Tests supported

Visual Acuity

  • Randomized Landolt C
  • Snellen
  • ETDRS

Achromatic Contrast

  • Randomized Landolt C
  • Gabor
  • Rapid Contrast Sensitivity Curve



Color Contrast

  • Color deficiency screening
  • Cone Contrast Test (CCT)
  • Luminance masked CCT

Stereo Vision

  • Stereo Search
  • Dual Ring Stereo
  • Random Dot Stereo

Oculomotor Function

  • Horizontal Phoria
  • Vertical Phoria
  • Vergence range
  • 4-dot suppression

Other

  • Motion sensitivity
  • Reading speed
